ALU Bi-fold Interior

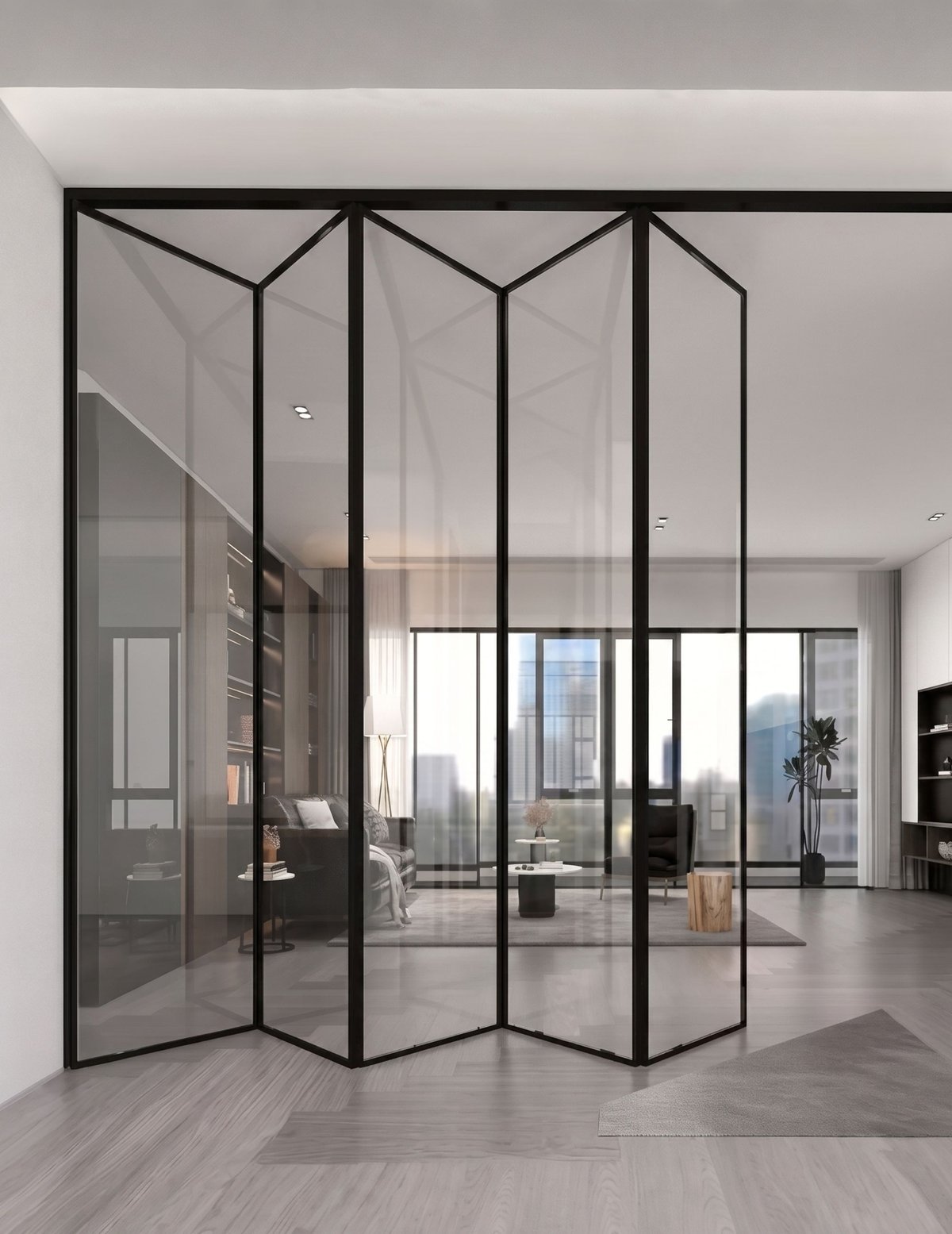

The HALCO ALU Bi-Fold Interior is a sleek, modern bi-fold system designed without a bottom threshold—offering seamless floor continuity and architectural elegance. Supports heights up to 3000mm and up to 95% clear opening. The system is top-hung, with all its weight supported from above, eliminating the need for a bottom track. Ideal for interior space separation where maximum opening is required.
Key Features
Threshold-less Design for uninterrupted flooring
Top-Hung System with concealed load-bearing upper rail
Sleek & Slim Aluminium Profiles for minimalist appearance
No Bottom Track Required, enhancing accessibility and design flow
Ideal for Indoor Partitions or low wind exterior use
Smooth Folding Mechanism for effortless operation
Perfect for Modern Luxury Interiors
| Specification | ALU Bi-fold Interior |
|---|---|
| Profile Width | 45mm |
| Profile Depth | 16mm |
| Maximum Height | 3000mm |
| Maximum Width | 900mm |
| Glass / Panel Thickness | 8mm |
| Typologies | Double, Triple and Quadruple |
Typology
- Double
- Triple
- Quadruple

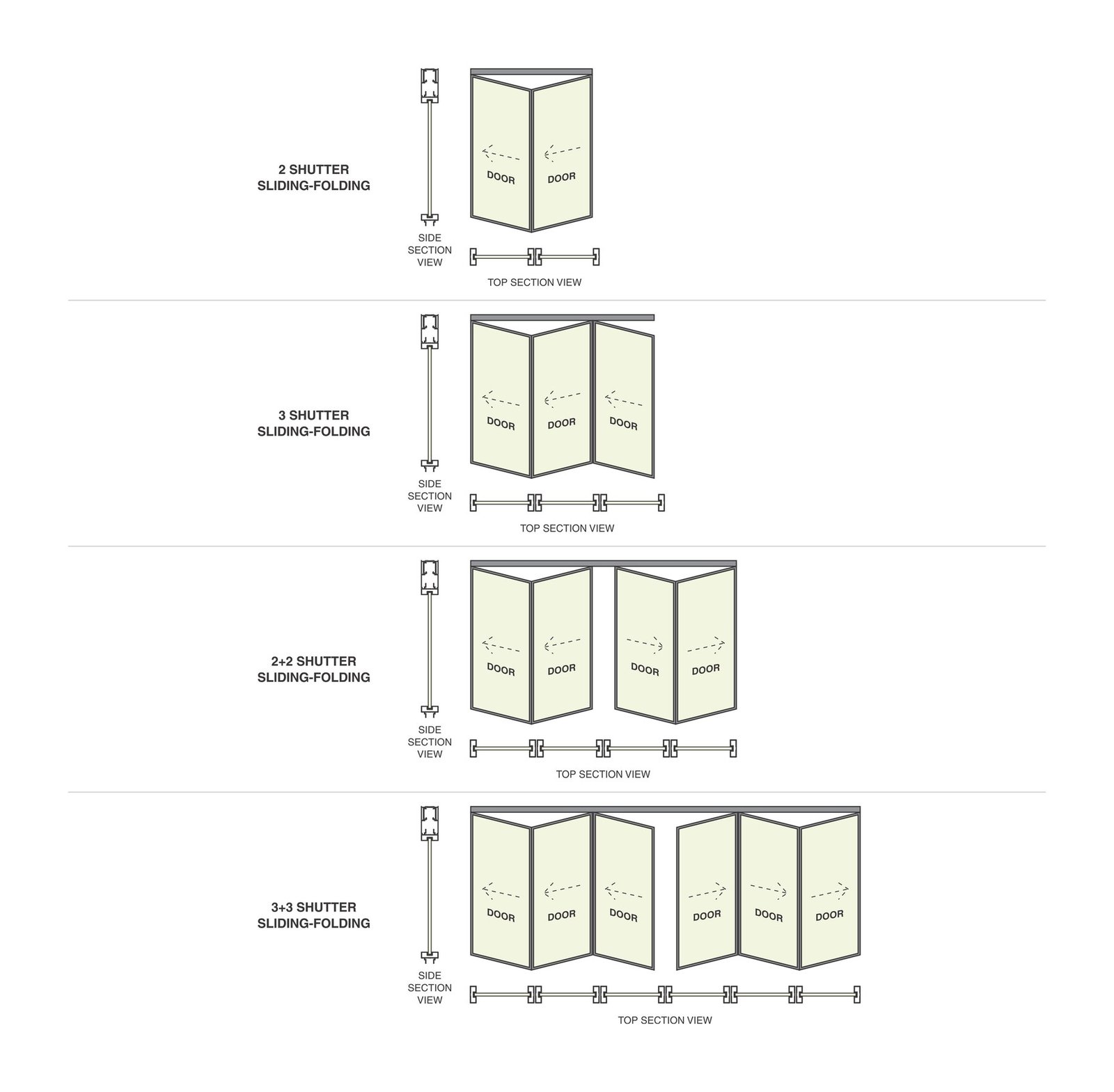

ALU Bi-fold Interior – 2D typology drawing (click to enlarge)
Elevate your interior aesthetics with our finishing palette, featuring durable Powder Coating, Premium Anodizing for corrosion-proof metallic sophistication, and sublimation Wood Coating offering timber aesthetics without the maintenance.
Powder Coating
Matt Black
Satin Grey
Satin White
Metallic Grey
Texture Grey
Metallic Black
Champagne
Anodized Shades
Natural Anodised (NA)
Light Champagne (HAL AC 01)
Champagne (HAL AC 02)
Light Bronze (HAL AC 03)
Dark Bronze (HAL AC 04)
Black (HAL AC 05)
Wood Coating Finish
Wallnut
Teak Wood
